3minutová animovaná ukázka výrobní linky na extruzi PVC trubek od společnosti JWELL MACHINERY

The entire process of JWELL MACHINERY's Extruze PVC trubek production line is presented in a 3D animation, eliminating the need for on-site visits. This immersive visual experience bypasses complex technical explanations, clearly showcasing every step of the pipe manufacturing process, from raw materials to finished products. The dynamic presentation vividly highlights the efficiency and sophistication of JWELL's extrusion production line, making the precision and strength of industrial technology easily accessible through visual storytelling.

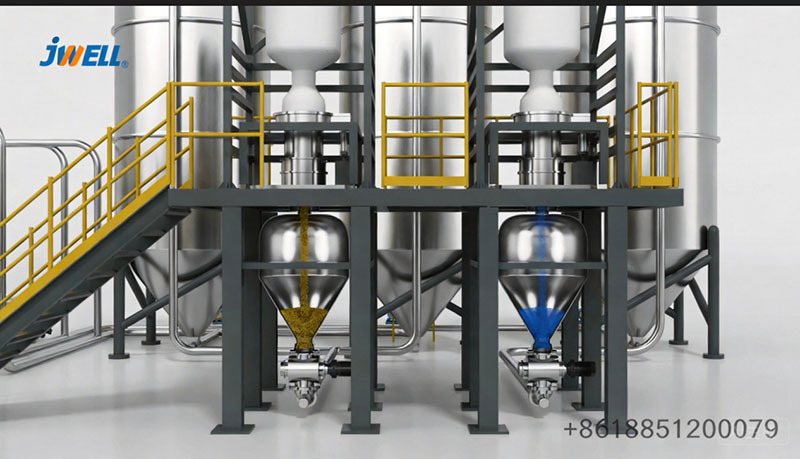

The animation opens with the orderly entry of PVC raw materials , smoothly transported through the conveying system. Uniform granules progress steadily, marking the beginning of the production journey. The animation captures every detail of the conveying process, realistically depicting the initial phase and giving viewers a clear sense of the systematic and rigorous nature of the production process from the very start.

Once the raw materials are conveyed, they undergo cold mixing, hot mixing, and storage in a buffer silo before being fed into a kuželový dvoušnekový extruder . The animation vividly illustrates the mixing and melting process inside the extruder, allowing viewers to easily understand the core function of the extrusion stage through intuitive visual representation.

The melten material then enters the mold, where it gradually takes the shape of a uniform pipe blank under the molding action. Close-up shots clearly capture the moment of material shaping, showing the transformation from a molten state to a defined, smooth, and well-formed pipe. This highlights the critical role of the mold in the pipe forming process.

After the pipe blank is formed, it enters the vacuum chamber, where it is cooled and solidified through water spraying and vacuum adsorption in coordination with a water pump. The animation clearly shows this collaborative process, illustrating how the soft pipe blank gradually becomes rigid and well-structured within the vacuum chamber.

This step is crucial for ensuring the final quality of the pipe.

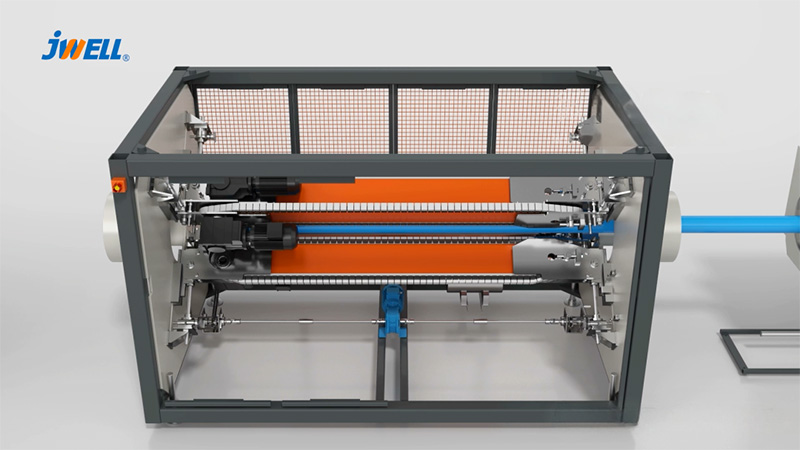

Once the pipe is solidified, it is pulled forward steadily by the haul-off unit, maintaining a uniform speed that synchronizes with the overall production line. The animation follows the movement of the pipe, clearly showing the stable operation of the haul-off unit. The surface of the pipe remains smooth and unblemished, highlighting the automation and stability of the equipment.

After the hauling process is completed, the cutting machine automatically initiates the cutting process based on preset lengths. The cut surfaces are smooth and precise, and the process is both fast and efficient. The animation captures the exact moment of cutting, showcasing a seamless and orderly process that minimizes the need for manual intervention, thus emphasizing the intelligent advantages of the equipment.

Finally, the cut and qualified pipe products automatically drop onto the conveyor system, which transports them to the finished product area for neat stacking. The animation presents a panoramic view of the entire process of conveying and stacking finished products. Each pipe is neatly arranged, demonstrating the closed-loop efficiency of the production line and offering viewers a cohesive and intuitive visual experience.

In just three minutes, the animation avoids complex technical explanations and focuses solely on presenting the production process visually and clearly. From raw materials to finished products, each step is illustrated in vivid detail, fully recreating the comprehensive operation of JWELL's PVC pipe extrusion production line. This allows viewers to quickly grasp the production workflow and appreciate the strength and craftsmanship of JWELL MACHINERY, making industrial production both simple to understand and visually engaging.
